Aquasphere
The Aquasphere is an AQUATON® spray feature which is suitable for shallow pools and Spraypark applications with no standing water. There are no moving parts and simple interaction for the players is with the water flow alone.

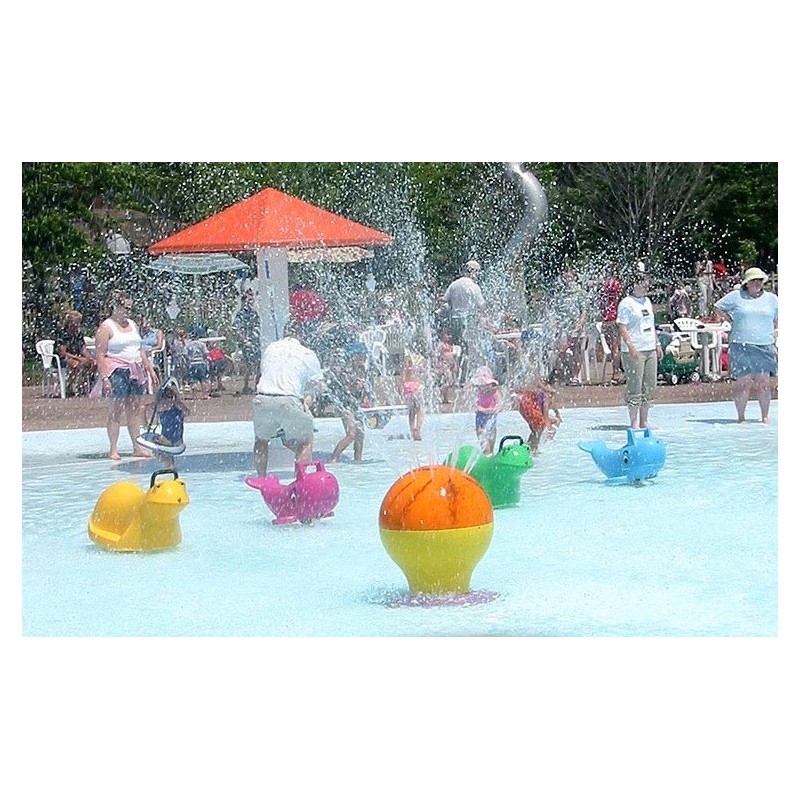

The unit is a mounted sphere with a unique arrangement of nozzles in the upper hemisphere. Children create various effects by playing with the jets. By stopping a jet, the other jets get higher. The unit is well suited for one or several participants at a time.
Fabricated from tough solid fire resistant fiberglass, the unit is just as strong and much lighter than steel, offering a lifetime warranty against corrosion. No embedded anchors or complicated foundations are required thus cutting down installation costs.
Installation Details
Aquatons have been designed to simplify installation and reduce construction costs. There are no troublesome embedded anchors. All Aquatons can be automated and sequenced if required.
The unit is simply bolted to the slab after a rigid pipe to flexible hose connection is made at the base. Setting the base in location enables drilling anchor holes in place. Expandable stainless steel anchors or stainless threaded rod with chemical set are both acceptable anchoring methods.
After anchors are in place, the base cowling slips over the flange and is fastened in place to create a neat and safe installation with no exposed fasteners.
Width: 24.5"
Height: 33.75"
Flow: 25 gpm
Spray: 5'
The unit is a mounted sphere with a unique arrangement of nozzles in the upper hemisphere. Children create various effects by playing with the jets. By stopping a jet, the other jets get higher. The unit is well suited for one or several participants at a time.
Fabricated from tough solid fire resistant fiberglass, the unit is just as strong and much lighter than steel, offering a lifetime warranty against corrosion. No embedded anchors or complicated foundations are required thus cutting down installation costs.
Installation Details
Aquatons have been designed to simplify installation and reduce construction costs. There are no troublesome embedded anchors. All Aquatons can be automated and sequenced if required.
The unit is simply bolted to the slab after a rigid pipe to flexible hose connection is made at the base. Setting the base in location enables drilling anchor holes in place. Expandable stainless steel anchors or stainless threaded rod with chemical set are both acceptable anchoring methods.
After anchors are in place, the base cowling slips over the flange and is fastened in place to create a neat and safe installation with no exposed fasteners.
Width: 24.5"
Height: 33.75"
Flow: 25 gpm
Spray: 5'
